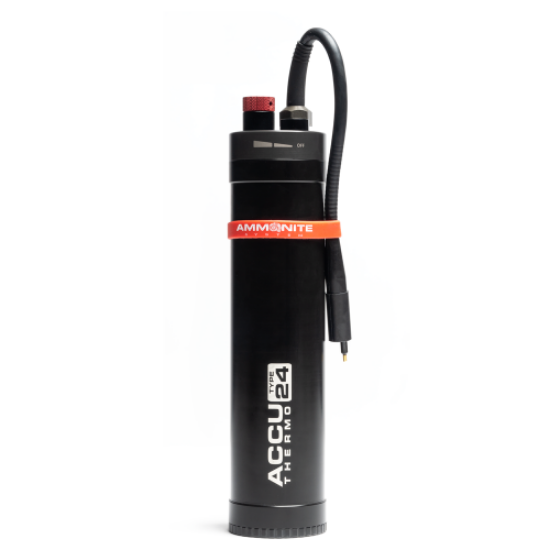

Ammonite Accu thermo type 24

MODERN POWER SOURCE FOR HEATED DIVE WEAR AND UMBILICAL DIVING LIGHTS
Manufacturer: Ammonite System
€1153.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
  • MODERN POWER SOURCE FOR HEATED DIVE WEAR AND UMBILICAL DIVING LIGHTS
    The ACCU THERMO battery has been designed to efficiently and reliably supply power to heated dive wear and umbilical dive lights operating at 12V.
    Simple and intuitive control, efficiency, and the highest possible durability distinguish ACCU THERMO from other devices on the market of modern diving equipment.

  • POWER SUPPLY OF THE HEATED GEAR
    ACCU THERMO has two connection ports. They’re located at the top part of the casing.
    One port with a permanently installed E / O cord (cords with wet connector) is to be used only for the heated dive wear.
    The heating supply has a three-stage heating control at the ranges of: 0 / 70%  / 100%.
    This port is equipped with the so-called intelligent E / O circuit.
    200 W is the total electrical load capacity of the connected equipment (lighting, heated dive wear: undersuit, vest, gloves)!
  • UMBILICAL LIGHT POWER SUPPLY
    The "charging / torch" port is used to charge the battery and to connect 12V umbilical lights.
    This port is secured with an aluminium cap.
    Please remember to secure the port with the cap when it is not being used to charge or power the umbilical light. Diving with a battery that has an improperly screwed cap securing the charging port will lead to flooding of the battery and, as a consequence, it will damage the battery
  • LED INDICATOR – STAGE ONE
    The LED indicator is located on the top cover of the battery and it informs the user about the battery charge level and the operating status of the entire system.
    After the power is turned on, the indicator first lights up for 4 seconds, providing information about the battery charge level:
    • green, steady: 75%-100% charging capacity
    • green, blinking: 50%-75% charging capacity
    • red, blinking: 25%-50% charging capacity
    • red, steady: less than 25% charging capacity
  • LED INDICATOR – STAGE TWO
    After the first four seconds, it switches to the mode that indicates the operating mode and the connection status of the heated dive wear:
    • two repeated red flashes, one green flash – battery ready, E/O receiver not connected.
    When the receiver is connected and detected, the E/O circuit becomes active and it starts supplying power to the connected device.
    • green, steady – receiver connected; the system works properly.
  • THREE-STAGE POWER ADJUSTMENT
    The three-stage power control (0/70% / 100%.) ensures the effective management of energy and allows for extended battery life.The power is regulated by a large magnetic switch. It has a distinct step, noticeable even with thick gloves on.
  • „INTELLIGENT E/O”
    It is an electronic circuit that protects the E / O cord (the metal pins in the E / O cord connector) against the harmful effects of electrolysis.
    When ACCU THERMO is not connected to any receiver (e.g., a heated vest), there is no voltage on the wet connector (E/O cord end).
    Thanks to the „intelligent E/O”, voltage is cut off automatically also when the cord gets unplugged during operation.
    This way, anytime the unconnected E/O cord is in the water, an electrical current doesn’t pass through its pins, making the system safe from damage.
  • DURABILITY AND RELIABILITY
  • The casing is made of a combination of hard anodized aluminium and Policatal (POM C).
    Policatal (POM C) is a light and extremely durable polymer resistant to mechanical damage.
    The aluminium alloy used in ACCU THERMO is light, durable and resistant to corrosion in sea water.
    Additionally, the aluminium elements of ACCU THERMO have been covered with a protective layer of a hard anode. It makes the battery even more resistant to wear and mechanical damage.
    All graphics and inscriptions on the casing are laser-engraved, which makes them easy to read, as well as highly durable.
     The ACCU THERMO 14 casing is secured with two O-rings.
  • SAFETY VALVE
    ACCU THERMO is the only battery on the market equipped with a safety exhaust valve.
    The Safety Valve is located in the lower part of the casing and it protects the battery against damage
    In the event of a Li-Ion battery pack failure, gas may be emitted and as a result, the battery casing may explode
    The valve is maintenance-free and should not be disassembled. Do not interfere with the operation of the valve in any way.
  • BMS BATTERY MANAGEMENT SYSTEM
    Each Ammonite System battery pack is equipped with a BMS Battery Management System ensuring its safe operation. The system was used because the pack uses Li-Ion cells – they are very sensitive to overcharging, as well as to a deep level of discharge and to short circuit.
    BMS provides additional benefits: extending the life of battery cells and maintaining a minimum safe level of charge.
  • SAFE IN TRANSPORT
    The transportation of lithium batteries is subject to international regulations that may vary depending on the type of transport: whether it is by sea, road, or air.
    To meet strict transport safety standards, the lithium-ion (Li-Ion) batteries used in ACCU THERMO meet the requirements of UN Transportation Testing (UN / DOT 38.3).
    The appropriate certificate can be downloaded from the Ammonite website.
  • AMMONITE SYSTEM QUALITY
    AMMOPOWER - top quality products and services backed by our extended to 3 years warranty.
  • AMMO LITHIUM CHARGER
    AMMO LITHIUM CHARGER is a battery charger intended to charge ACCU THERMO lithium series batteries with 10,8 – 11,1V voltage.
    AMMO LITHIUM CHARGER is a universal, impulse source of current which switches off when the battery is fully charged.
    Charging time is dependent on the charging status of the battery pack.
    The charging status is shown on the LCD. Note that charger indications are only approximate. They allow you to determine an approximate level of battery charge.
    The charger is protected against voltage surges occurring in the network 100 / 240V.
  • ECO-FRIENDLY PACKAGES
    Since we only have one habitable planet, everyone has to play a part in protecting the environment.
    At Ammonite System, we are very much interested in preserving the environment, and we’re doing our part.
    When deciding on boxes, bags, or containers, we have chosen to use recyclable cardboard packaging instead of plastic.
    Recyclable packaging is a great way to extend the life of previously used materials and positively impact sustainability.
  • SET CONTAINS
    We offer ACCU THERMO as a set which includes:
    • ACCU THERMO
    • Universal handle for attaching the battery to a harness
    • AMMO LITHIUM CHARGER
    • Blind plug for E / O cord
    • Silicone band for E / O cord
    • Ammonite Butter - silicone grease
    • Two silicone O-rings



SPECIFICATION
capacity nominal23,45 Ah
charge/discharge cycles500-700
charger input voltage100-240 V
charging time~8 h
over pressure valveYES
rechargeable batteryLi-Ion
total energy242 Wh
voltage10,95 V
max. length262 mm
max. diameter66mm
weight1610 g
weight in water715 g
max. operation depth100 m



More info: https://ammonitesystem.com/accu-thermo-type-24.html
